9.7 inch_G097-5107628401-E30PNZ(30P eDP,1024*768,400nits,-10~60)

1、LCD Size：9.7 inch

2、Resolution：1024*768

3、Active area(mm): 196.61*147.46

4、Luminance：400cd/m2

5、Contrast ratio：900：1

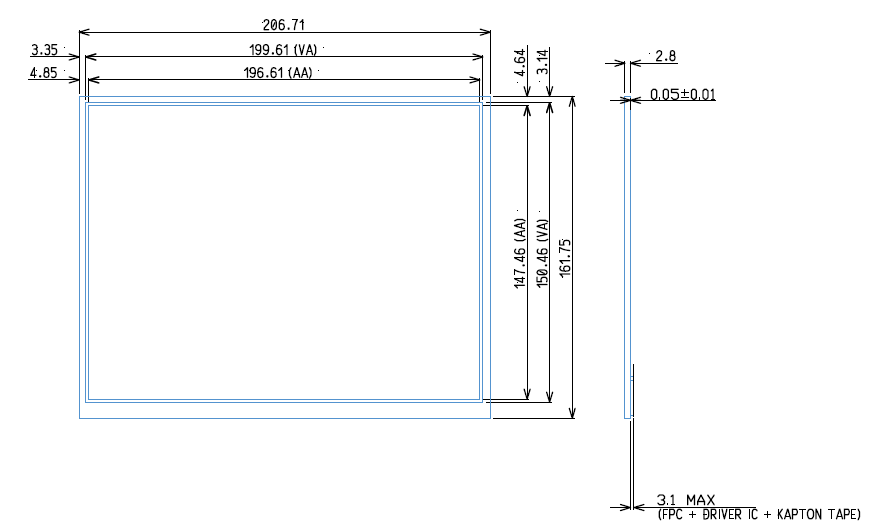

6、LCM Size(mm)：206.71*161.75*2.8

7、Operation Temperature：-10~60

8、Storage Temperature：-20~70

9、Interface：30P eDP

10、View angle ：IPS

11、LED life time(Typ.) ：30000 H
