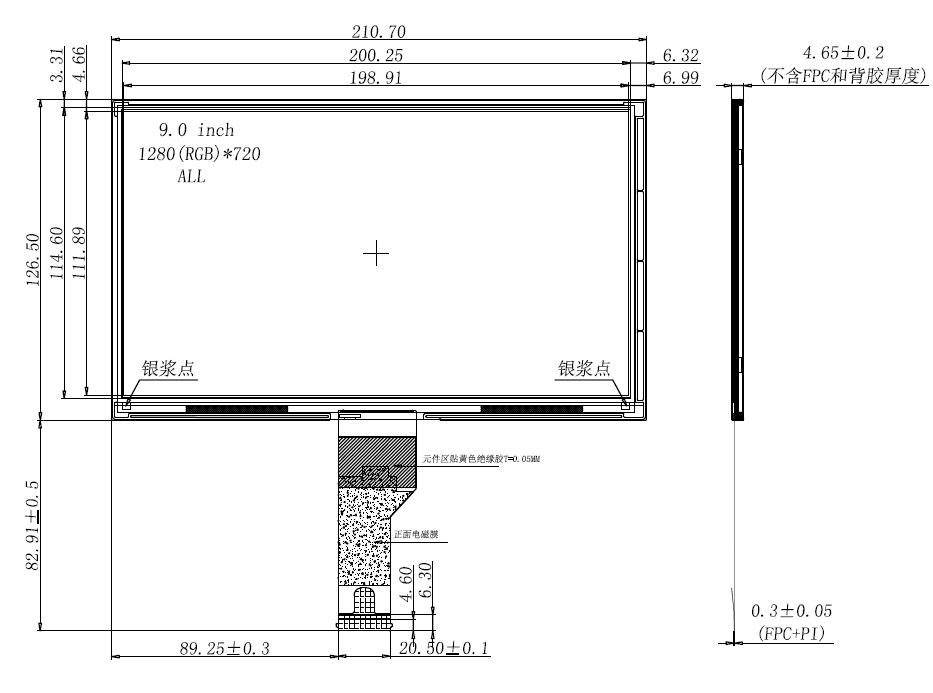

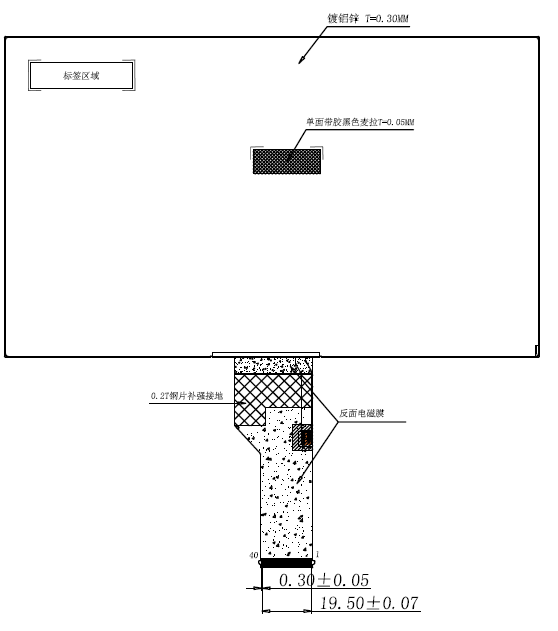

9 inch_G090-7117250801-L40PNZ-H03(40P LVDS,1280*720,800nits,-30~80)

1、LCD Size：9 inch

2、Resolution：1280*720

3、Active area(mm): 198.91*111.89

4、Luminance：800cd/m2

5、Contrast ratio：1000：1

6、LCM Size(mm)：210.7*126.5*4.65

7、Operation Temperature：-30~80

8、Storage Temperature：-30~85

9、Interface：40P LVDS

10、View angle ：IPS

11、LED life time(Typ.) ：30000 H
