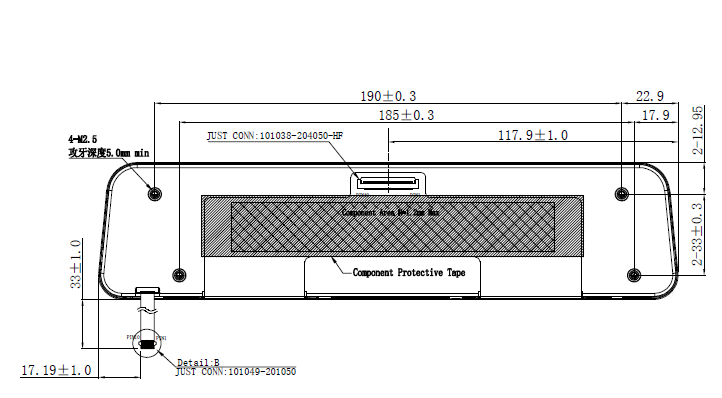

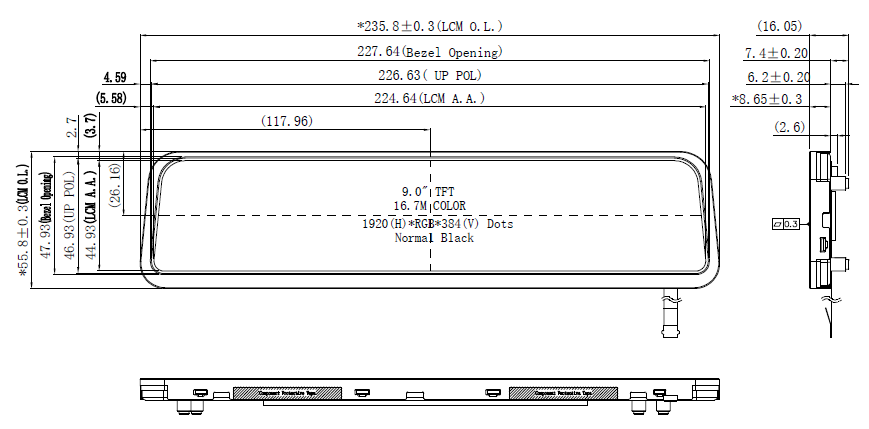

9 inch_G090-6193886302-L40PMZ(40P LVDS,1920*384,3000nits,-30~85,Rearview mirror)

1、LCD Size：9 inch

2、Resolution：1920*384

3、Active area(mm): 224.6*44.9

4、Luminance：3000cd/m2

5、Contrast ratio：1000：1

6、LCM Size(mm)：235.8*55.8*8.6

7、Operation Temperature：-30~85

8、Storage Temperature：-40~90

9、Interface：40P LVDS

10、View angle ：IPS

11、LED life time(Typ.) ：30000 H
