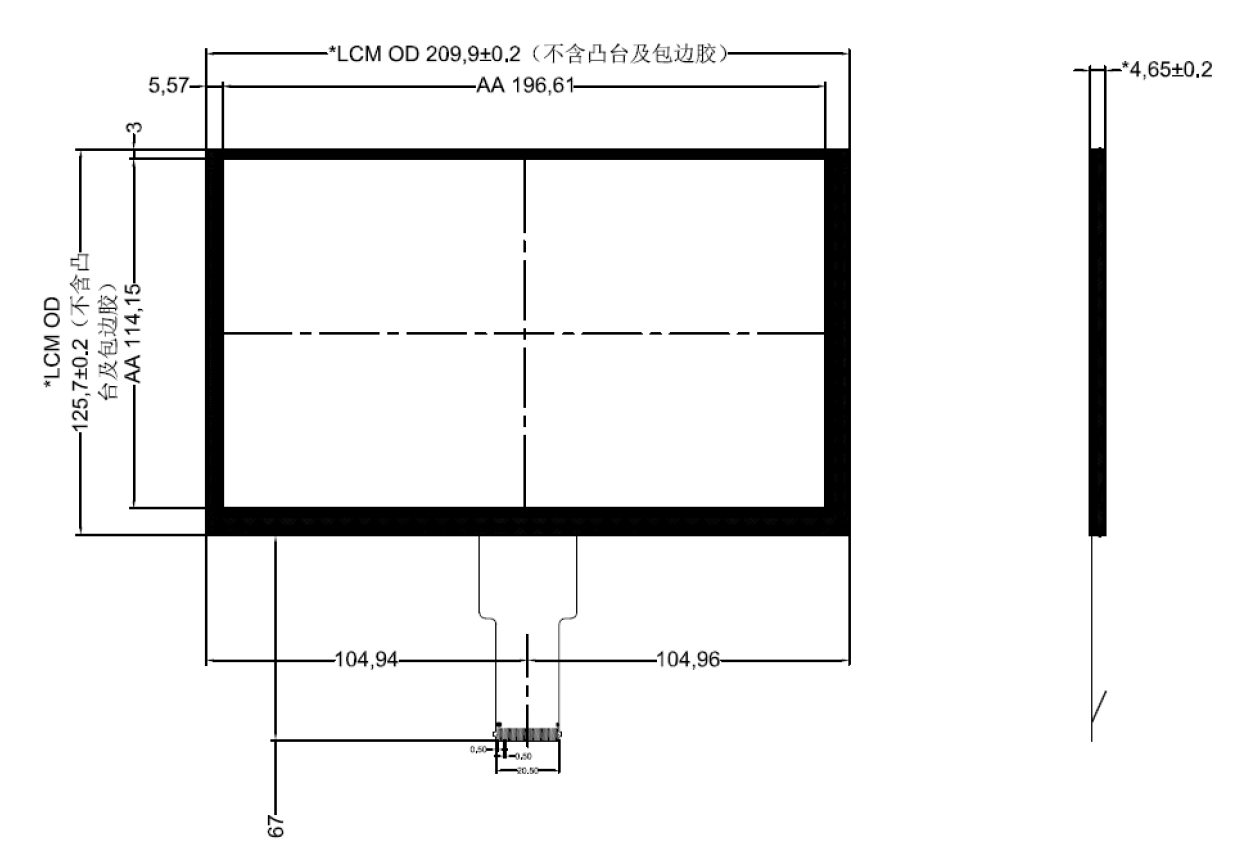

9 inch_G090-1106046601-L40PNZ_A01(40P LVDS,1024*600,600nits,-20~70)

1、LCD Size：9 inch

2、Resolution：1024*600

3、Active area(mm): 196.608*114.15

4、Luminance：600cd/m2

5、Contrast ratio：800：1

6、LCM Size(mm)：209.9*125.7*4.65

7、Operation Temperature：-20~70

8、Storage Temperature：-30~80

9、Interface：40P LVDS

10、View angle ：IPS

11、LED life time(Typ.) ：30000 H
