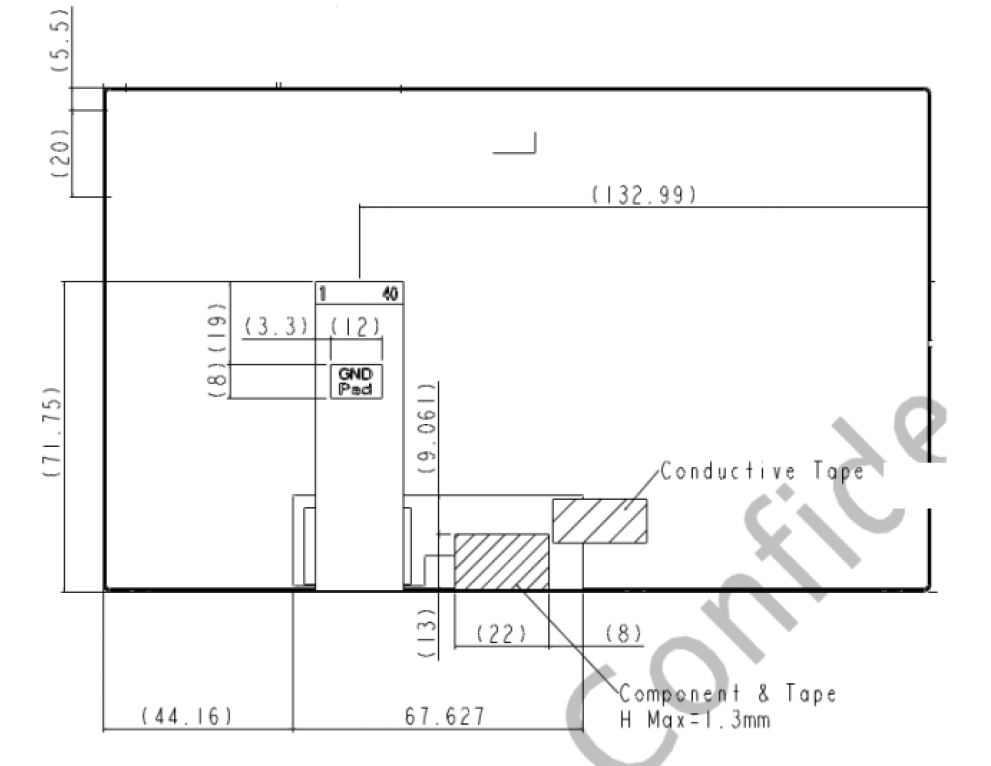

8.0 inch_G080-6106064601-L40PNZ(LVDS,1024*600,TN)
8.0 inch_G080-6106064601-L40PNZ(LVDS,1024*600,TN)
  • 8.0 inch_G080-6106064601-L40PNZ(LVDS,1024*600,TN)
  • 8.0 inch_G080-6106064601-L40PNZ(LVDS,1024*600,TN)
8.0 inch_G080-6106064601-L40PNZ(LVDS,1024*600,TN)

1、LCD Size:8 inch

2、Resolution:1024*600

3、Active area(mm): 176.64*99.36

4、Luminance:600cd/m2

5、Contrast ratio:700:1

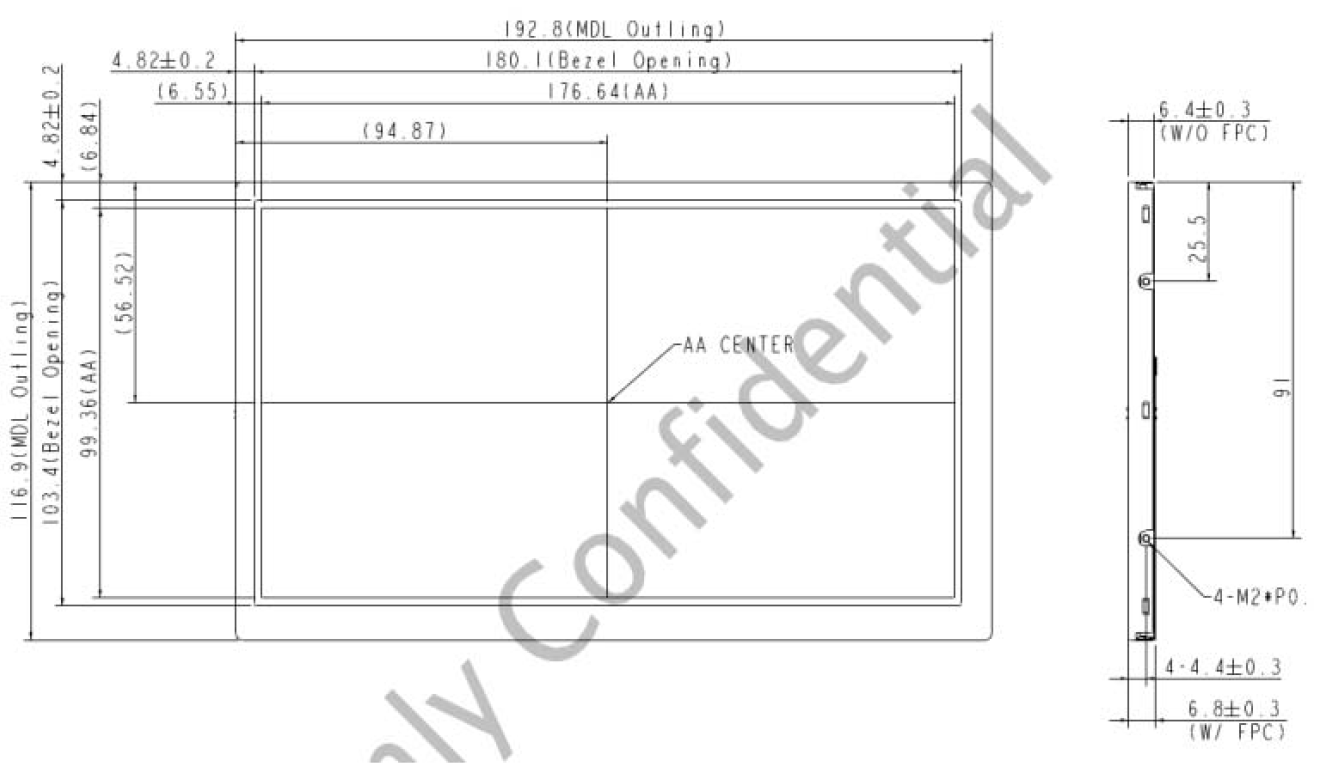

6、LCM Size(mm):192.8*116.9*6.4

7、Operation Temperature:-30~80

8、Storage Temperature:-30~80

9、Interface:40P LVDS

10、View angle :TN

11、LED life time(Typ.) :30000 H
