3.5inch, IPS , 320*480, 500nits, -20~70, 45P TTL
3.5inch, IPS , 320*480, 500nits, -20~70, 45P TTL
  • 3.5inch, IPS , 320*480, 500nits, -20~70, 45P TTL
  • 3.5inch, IPS , 320*480, 500nits, -20~70, 45P TTL
3.5inch, IPS , 320*480, 500nits, -20~70, 45P TTL

1、LCD Size：3.5 inch

2、Resolution：320*480

3、Active area(mm): 48.96*73.44

4、Luminance：500cd/m2

5、Contrast ratio：1000：1

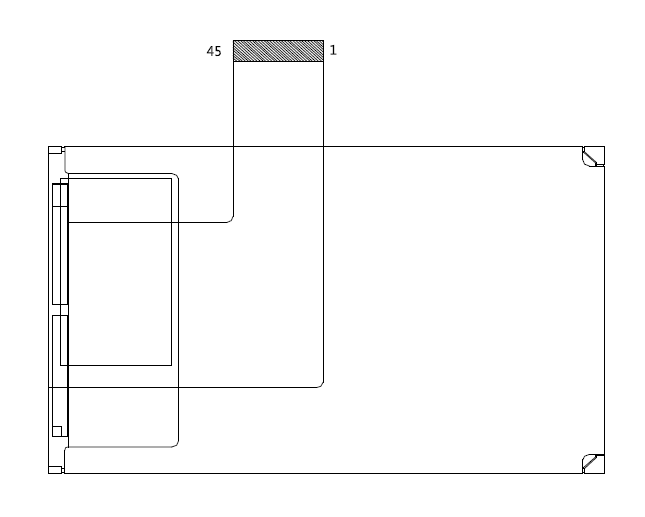

6、LCM Size(mm)：54.94*85.5*2.2

7、Operation Temperature：-20~70

8、Storage Temperature：-30~80

9、Interface：45P TTL

10、View angle ：IPS

11、LED life time(Typ.) ：30000 H
