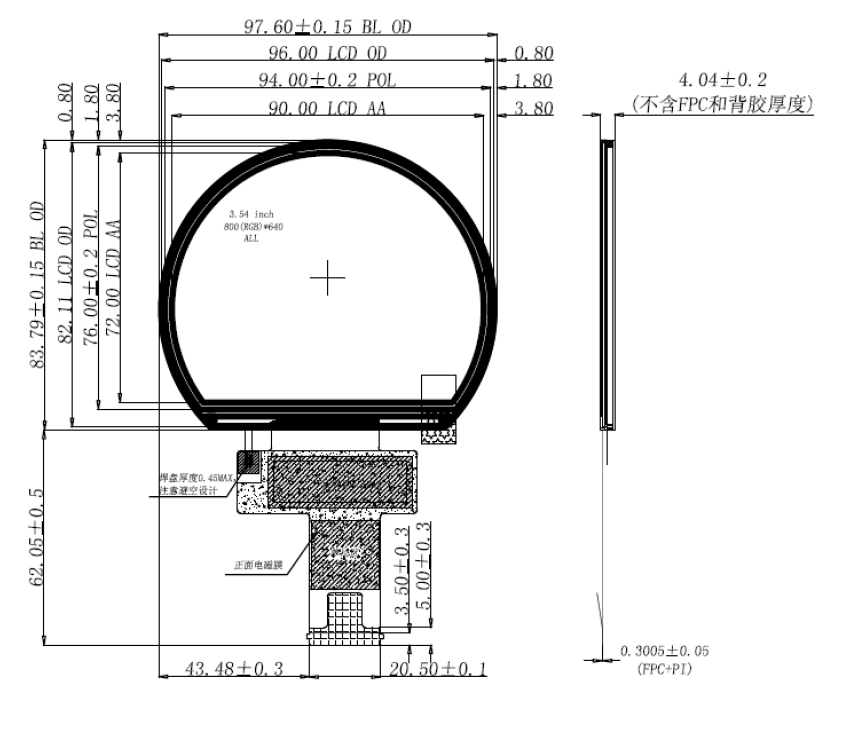

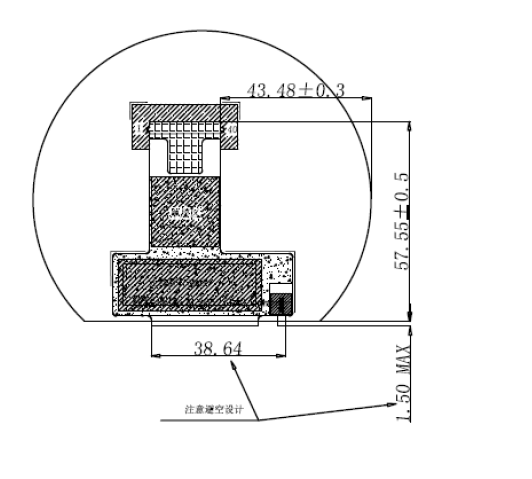

3.54 inch_G354-1806442801-L40PNZ(40P LVDS,800*640,800nits,-30~85,Fanshaped)

1、LCD Size：3.54 inch

2、Resolution：800*640

3、Active area(mm): 91*72

4、Luminance：800cd/m2

5、Contrast ratio：1200：1

6、LCM Size(mm)：97.6*83.79*4.04

7、Operation Temperature：-30~85

8、Storage Temperature：-30~85

9、Interface：40P LVDS

10、View angle ：IPS

11、LED life time(Typ.) ：30000 H
